Display images from Business Central via the API in Power BI

In the meantime, I have already been asked twice in my blog post “Display images from Business Central in Power BI” whether I could show how to display images from the cloud version of Business Central via API in Power BI.

First of all, this is subject to certain restrictions. In this example, we will convert the binary data of the image into a Base64 image string and then use it as the image URL in Power BI. However, the maximum character length in Power BI is 32,766 characters, which means that larger images cannot be displayed in full. Alternatively, you could also refer to external image URLs, but in this case the URL must be accessible anonymously.

Patrick and Kristian show how “”secured” images can also be accessed in the articles below.

But let’s start by loading the image data via the Business Central API.

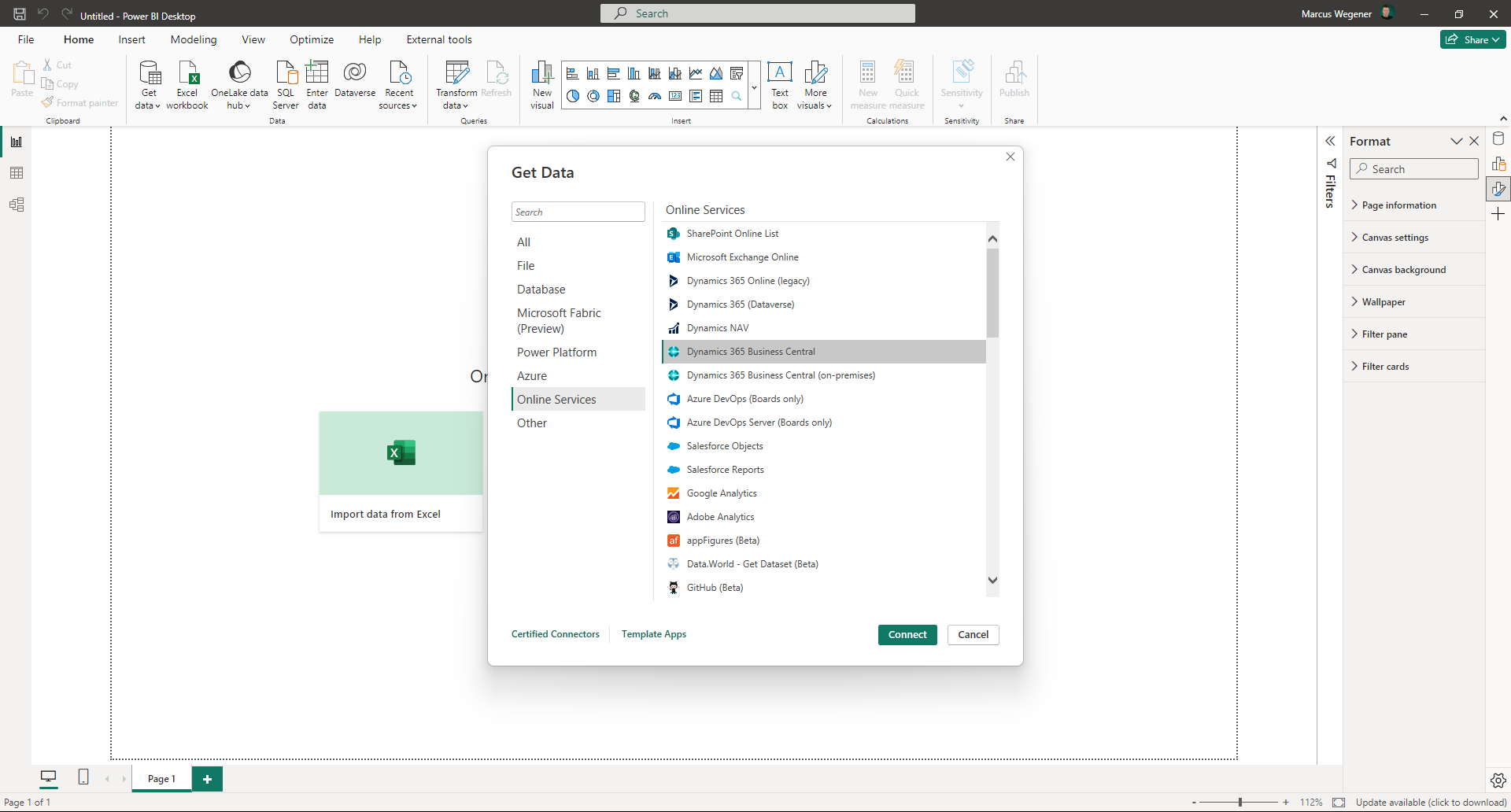

To do this, we open the “Dynamics 365 Business Central” Connect under “Get Data”.

Power BI Desktop - Get Data - Dynamics 365 Business Central

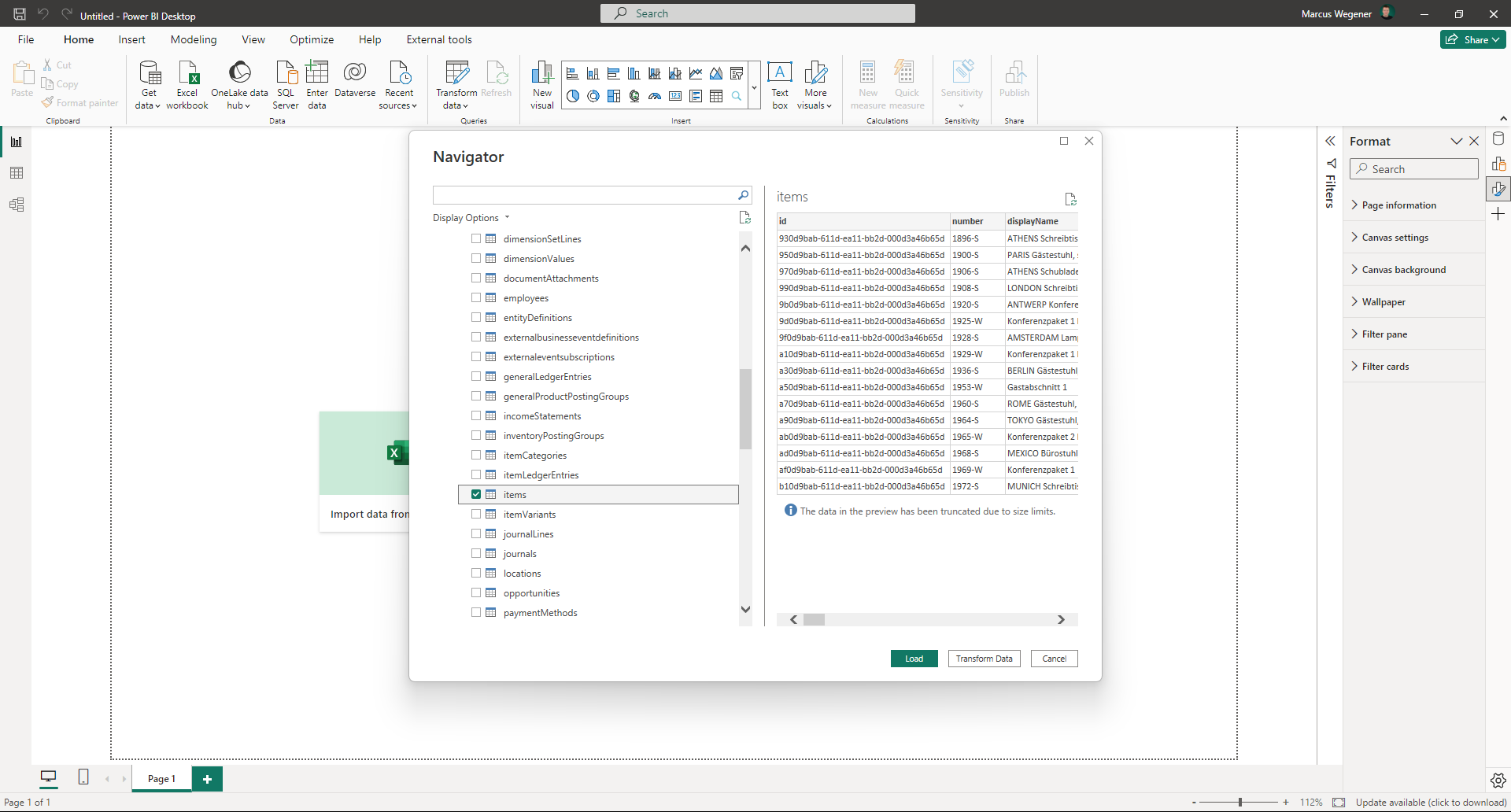

In the connector, we then select the environment, the company and then the entity items of the Standard APIs v2.0 and click on “Transform data”.

Power BI Destop - Dynamics 365 Business Central Navigator - items

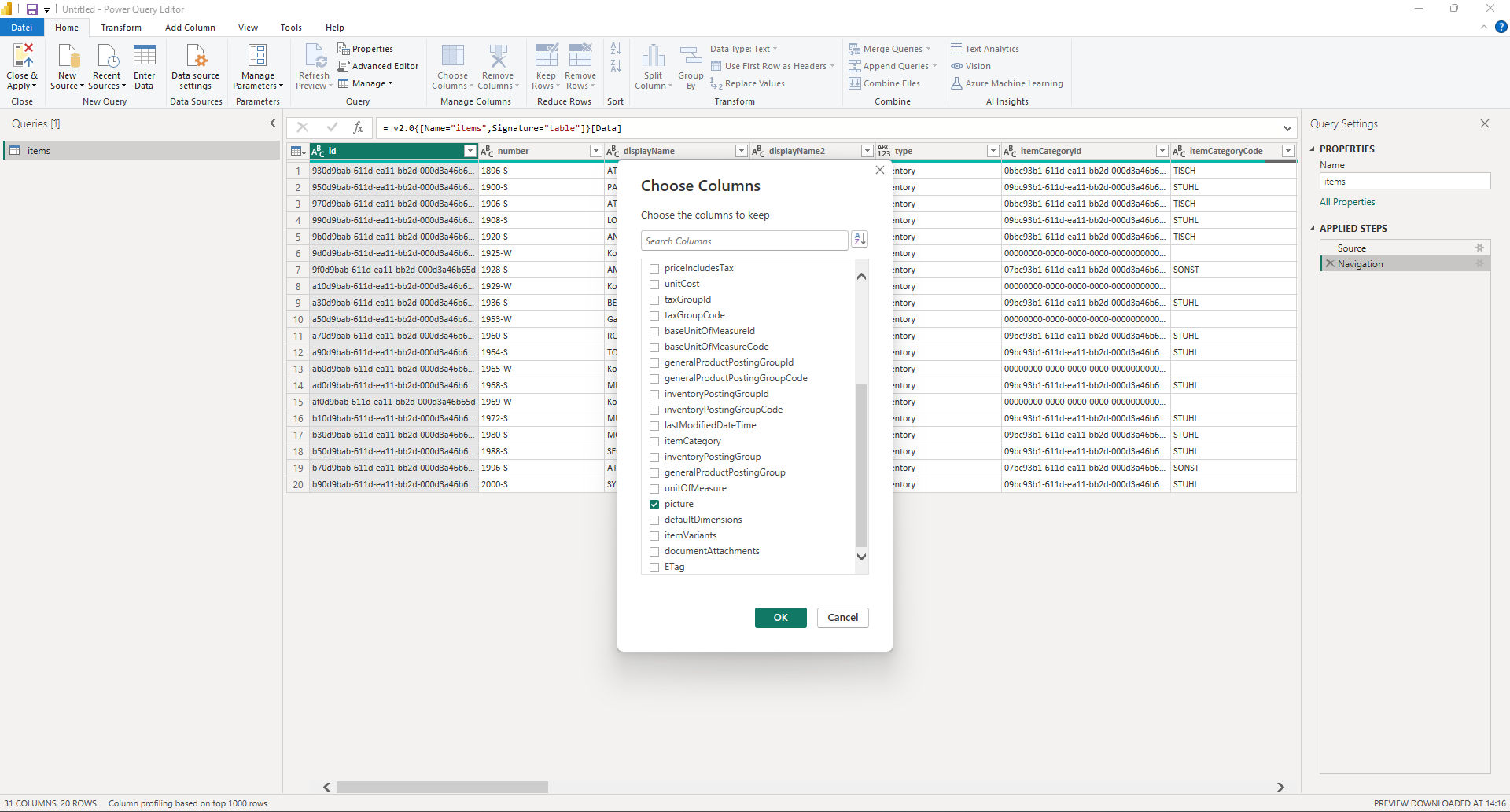

With “Choose Columns” we reduce the columns to the columns “number” “dispalyName” and “picture” that are relevant for us.

Power BI Desktop - Choose Columns

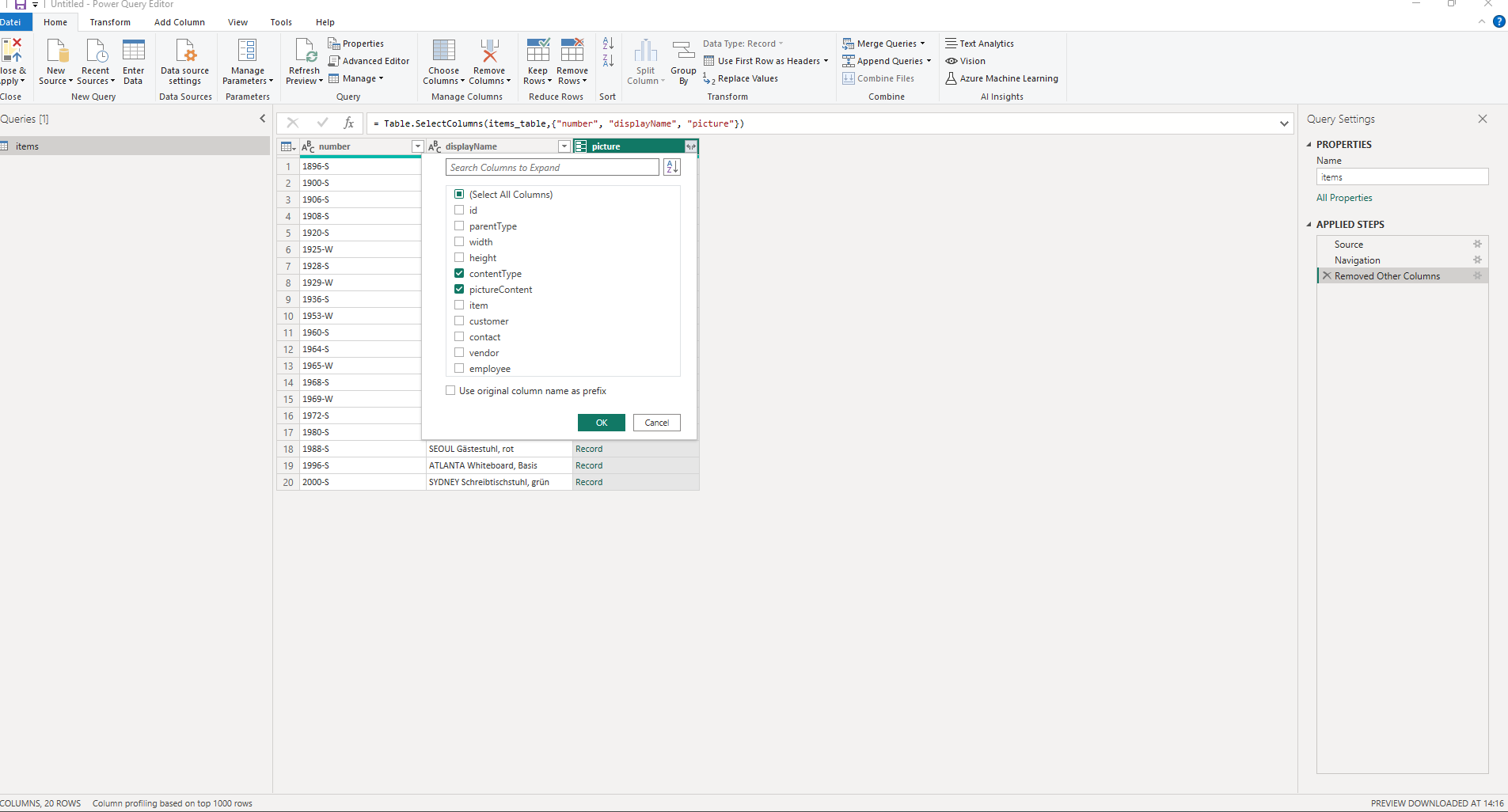

We then expand the “picture” column to include the “record” information “contentType” and “pictureContent”.

Power BI Desktop - expand picture column

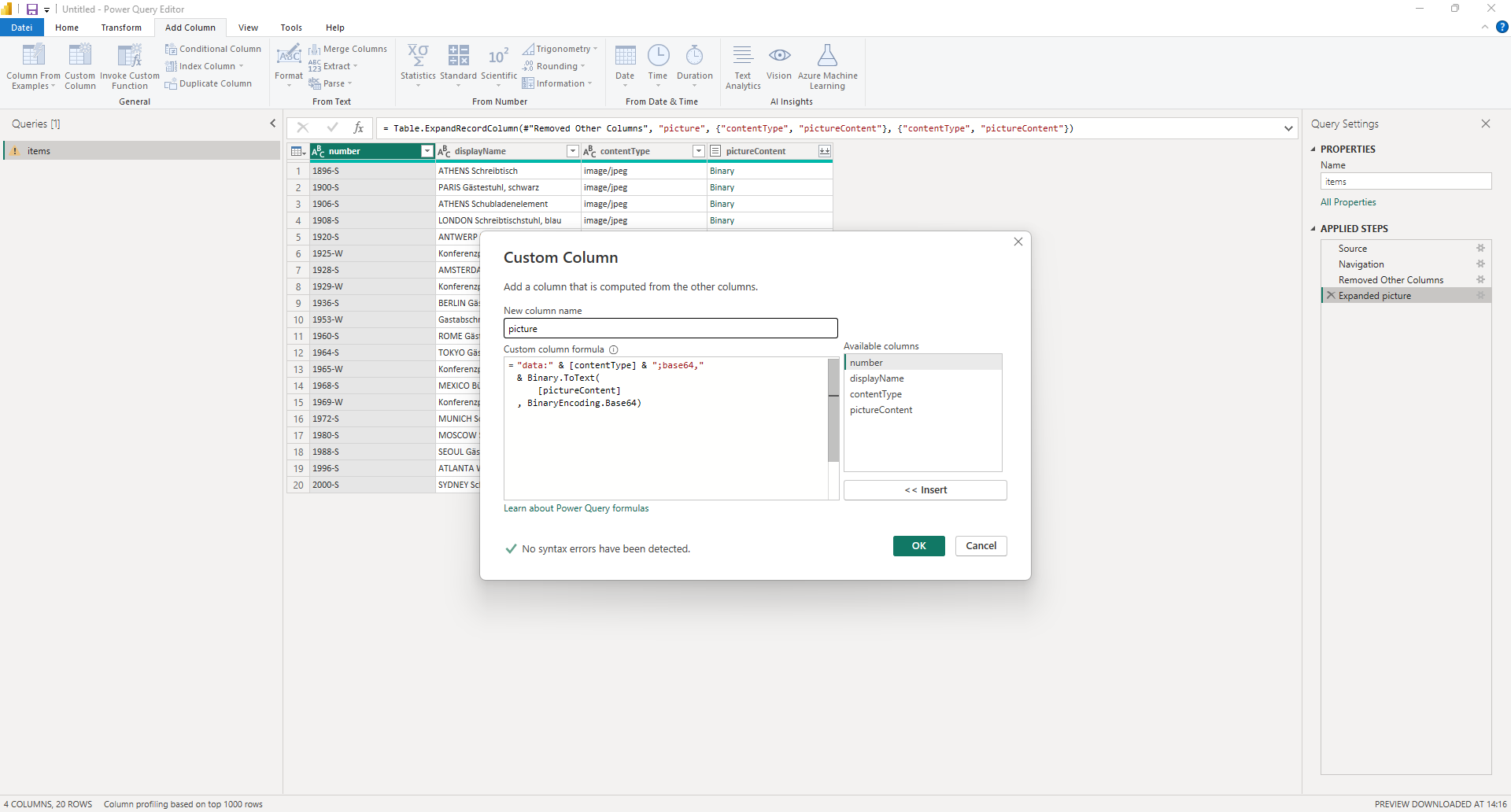

The Base64 image string can now be generated via a “Custom Column”.

= "data:" & [contentType] & ";base64,"
& Binary.ToText(
, BinaryEncoding.Base64)

Power BI Desktop - Custom Column - Base64 URL

Image URL in Power BI report

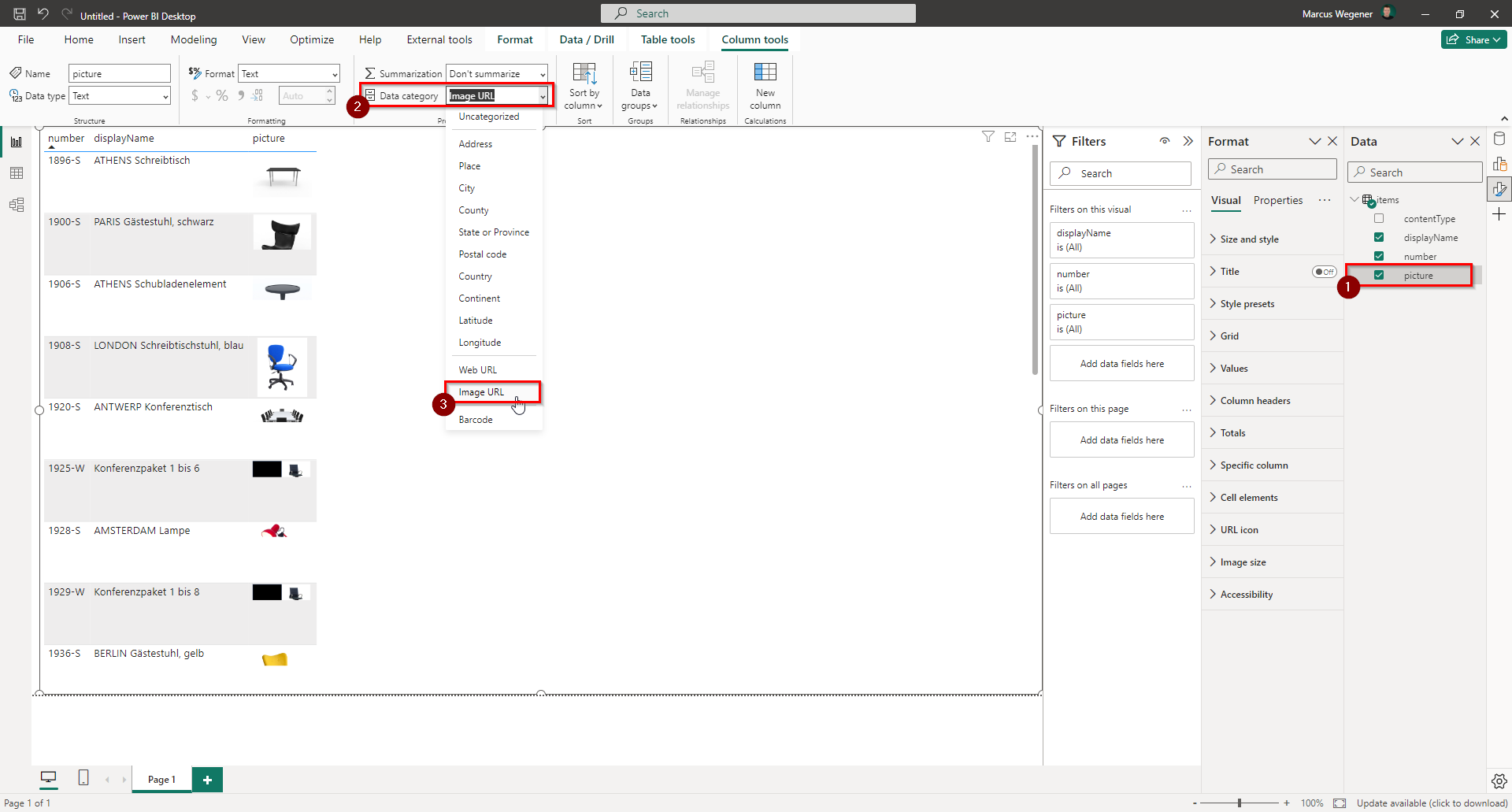

In order for the Base64 image string to be interpreted and displayed as an image by Power BI, the data category of the column must be changed to “Image URL”.
It is recommended to make the change before displaying the column in Power BI, otherwise the visual will render very long when displaying the long text.

Power BI Desktop - Image URL

Show secured image in Power BI

Patrick and Kristian show a way to display images in Power BI that require authentication at the source in their articles. In this case, a Power App is integrated that controls the authentication and displays the images.

Guy in a Cube – How to get Secure Images in Power BI Reports

Hier klicken, um den Inhalt von YouTube anzuzeigen.
Erfahre mehr in der Datenschutzerklärung von YouTube.

PBI Guy – Show “secured” Images in Power BI

Hier klicken, um den Inhalt von pbi-guy.com anzuzeigen
